• Country
• United States of America (USA)

• Manufacturer / Brand
• Dyna Co. (Dynaco); Philadelphia PA

• Year
• 1960 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 159412

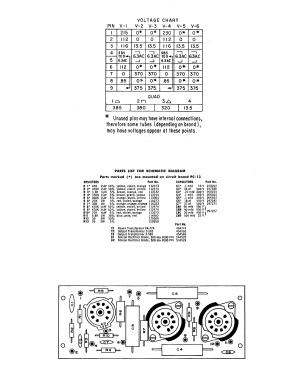

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 7247 7247 6BQ5 or 7189 6BQ5 or 7189 6BQ5 or 7189 6BQ5 or 7189

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 35 W (45 W max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: Dynaco Stereo 35 - Dyna Co. Dynaco; Philadelphia

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 330 x 100 x 140 mm / 13 x 3.9 x 5.5 inch

• Notes
• Power Amp, stereo.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
