- Country
- Great Britain (UK)
- Manufacturer / Brand
- Portadyne, (Brand), Dynaport Radio & Television Co. Ltd. (Whittingham Smith, Kew); London
- Year
- 1950 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 334426

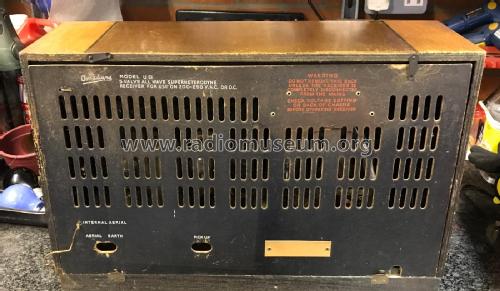

As purchased

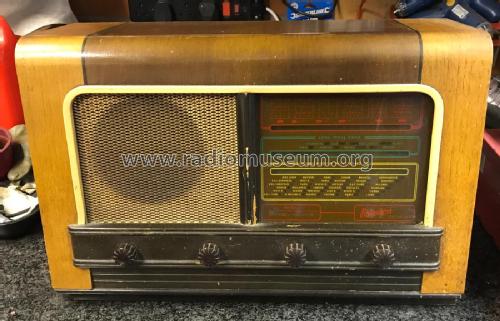

After restoration
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Portadyne 51 U51 - Portadyne, Brand, Dynaport
- Shape
- Tablemodel, low profile (big size).
- Notes
-
An AC/DC mains 3 band table radio housed in a wooden cabinet. With provision for a gramophone pickup and extension loudspeaker.
- Author
- Model page created by David Humphrey. See "Data change" for further contributors.
