• Year
  • 1965
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 108722
    • alternative name: B&K Manufacturing Company

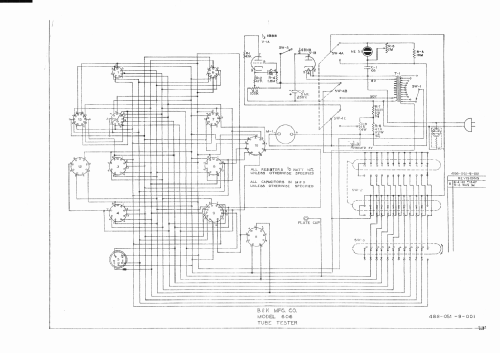

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • 6BN8
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Dyna-Jet 606 - B&K Precision, Dynascan Corp.,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 280 x 217 x 110 mm / 11 x 8.5 x 4.3 inch
  • Notes
  • B & K - Emission Tube Tester (shorts and quality test) - Provavalvole ad emissione (controlli per corto circuiti e qualità); Mobile in legno rivestito di plastica
  • Net weight (2.2 lb = 1 kg)
  • 3.9 kg / 8 lb 9.4 oz (8.59 lb)
  • Source of data
  • -- Collector info (Sammler)
  • Author
  • Model page created by Edoardo Fontana. See "Data change" for further contributors.
