For model Transistor Radio Analyst 960, B&K (Precision), Dynascan Corp., Cobra Electronics; Chicago, IL and Yorba Linda, CA:

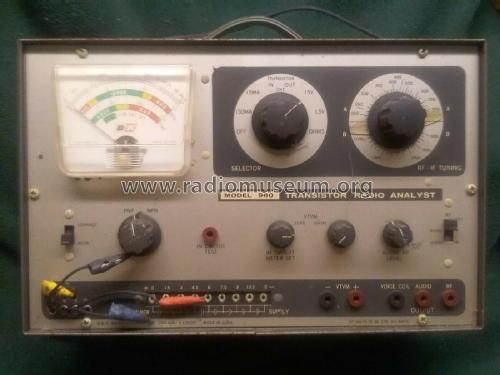

Transistor Radio Analyst 960 front

Country:  United States of America (USA)
Manufacturer / Brand:  B&K (Precision), Dynascan Corp., Cobra Electronics; Chicago, IL and Yorba Linda, CA
alternative name

B&K Manufacturing Company
Year: 1966 Category: Service- or Lab Equipment
Valves / Tubes 2: 12AU7 12AU7
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Transistor Radio Analyst 960 - B&K Precision, Dynascan Corp.,
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 12 x 7.75 x 4.5 inch / 305 x 197 x 114 mm
Notes Dynascan B&K 960 Transistor Radio Analyst;
One instrument operatiog as VOM, built-in power supply up to 12 V, RF-IF tuning, NPN-PNP tester, voice coil-, audio & RF banana plug terminals.
Source of data -- Collector info (Sammler)
Literature/Schematics (1) -- Schematic

Model page created by a member from A. See "Data change" for further contributors.
