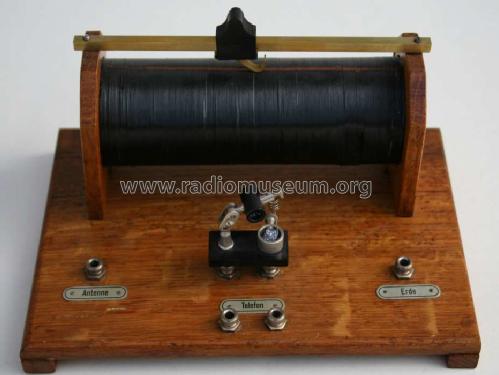

Detektor-Empfänger ; EAG Radio Centro (ID = 197311) Crystal Detektor-Empfänger ; EAG Radio Centro (ID = 2376433) Crystal
Detektor-Empfänger ; EAG Radio Centro (ID = 2376434) Crystal Detektor-Empfänger ; EAG Radio Centro (ID = 2376435) Crystal
Detektor-Empfänger ; EAG Radio Centro (ID = 2376436) Crystal Detektor-Empfänger ; EAG Radio Centro (ID = 2376437) Crystal
Detektor-Empfänger ; EAG Radio Centro (ID = 2376438) Crystal
Use red slider bar for more.
Detektor-Empfänger ; EAG Radio Centro (ID = 2376432) Crystal
EAG Radio Centro: Detektor-Empfänger [Crystal] ID = 2376432 1400x946
Select picture or schematic to display from thumbnails on the right and click for download.
For model Detektor-Empfänger, EAG Radio Centro oder Center; Thun

Country:  Switzerland
Manufacturer / Brand:  EAG Radio Centro oder Center; Thun
Year: 1928 ? Category: Detector-Radio (Crystal or diode, without tubes/transistors)
Main principle Crystal or Solid State Detector; Crystal-detection 1 circuit (no tubes)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Detektor-Empfänger - EAG Radio Centro oder Center;
Material Wooden case
Dimensions (WHD) 200 x 100 x 140 mm / 7.9 x 3.9 x 5.5 inch
Notes Schiebespule; mehrere Ausführungen.
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
