• Year
  • 1960 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 307708

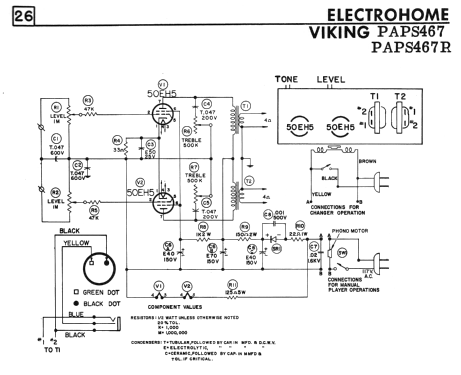

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 4 inch = 10.2 cm
  • Power out
  • 3 W (max.)
  • from Radiomuseum.org
  • Model: Viking PAPS-467R - Eaton Co. Ltd., The T. Viking;
  • Notes
  • The Viking PAPS-467R is a 2-tube stereo record player. Uses a BSR UA10 record changer. For 25 or 60 Hz depending on nameplate rating. Made by Electrohome for the Eatons department stores.

  • Author
  • Model page created by Tom Seeger. See "Data change" for further contributors.
