Viking RM392RRR

Viking RM392RRR ; Eaton Co. Ltd., The (ID = 2349225) Radio
Use red slider bar for more.
Viking RM392RRR ; Eaton Co. Ltd., The (ID = 2349225) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Canada
Manufacturer / Brand:  Eaton Co. Ltd., The T. (Viking); Toronto
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 25-60 Hz, 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 0.75 W (1.5 W max.)
from Radiomuseum.org Model: Viking RM392RRR - Eaton Co. Ltd., The T. Viking;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

The Viking RM392RRR is a 5-tube table radio for standard broadcast reception. Available in off white, coral, and turquoise cabinet. Loop antenna on back cover. Made by Electrohome for the Eatons department stores. See also models RM392, RM392R, and RM392RR.

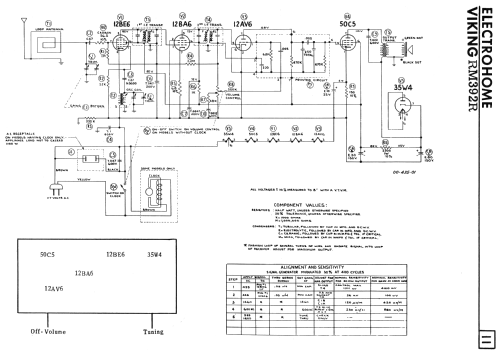

Literature/Schematics (1) Radio College of Canada (RCC) (Supplement 51)

Model page created by Tom Seeger. See "Data change" for further contributors.
