Viking 51-14 PMB62-417

Viking 51-14 PMB62-417; Eaton Co. Ltd., The (ID = 2149572) Radio

Viking 51-14 PMB62-417; Eaton Co. Ltd., The (ID = 2149573) Radio
Viking 51-14 PMB62-417; Eaton Co. Ltd., The (ID = 825999) Radio Viking 51-14 PMB62-417; Eaton Co. Ltd., The (ID = 825998) Radio
Use red slider bar for more.

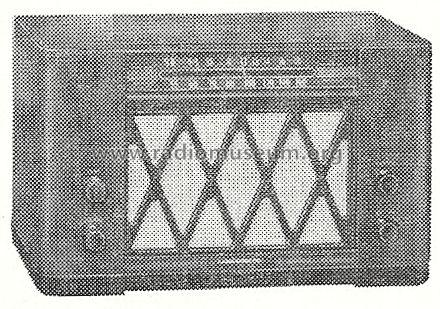

Viking 51-14 PMB62-417; Eaton Co. Ltd., The (ID = 825999) Radio
Eaton Co. Ltd., The: Viking 51-14 PMB62-417 [Radio] ID = 825999 440x309
Select picture or schematic to display from thumbnails on the right and click for download.
For model Viking 51-14 PMB62-417, Eaton Co. Ltd., The T. (Viking); Toronto:
Manufacturers Literature

Country:  Canada
Manufacturer / Brand:  Eaton Co. Ltd., The T. (Viking); Toronto
Year: 1951 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 1N5GT 1R5 1N5GT 1H5GT 1G4G 1G6G
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 1.5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.14 W (0.4 W max.)
from Radiomuseum.org Model: Viking 51-14 PMB62-417 - Eaton Co. Ltd., The T. Viking;
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

The Canadian Viking model 51-14 is a 6-tube radio covering standard broadcast and 9-18 MHz shortwave. It is powered by dry batteries and requires an external antenna. Made by Dominion Electrohome Ltd. for the T. Eaton Company.
Same as 51-14 PMB62-427 except for cabinet.

Source of data - - Manufacturers Literature
Literature/Schematics (1) Radio College of Canada (RCC) (Supplement 24 page 40 and 41.)

Model page created by a member from A. See "Data change" for further contributors.
