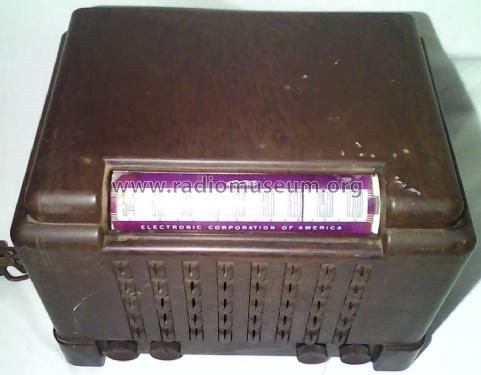

ECA, New York: 108 [Radio] ID = 1118966 933x848
Select picture or schematic to display from thumbnails on the right and click for download.

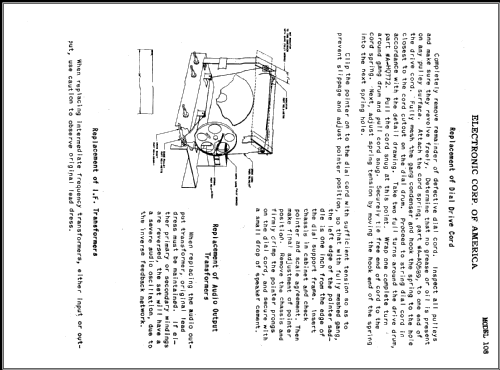

For model 108, ECA, New York:

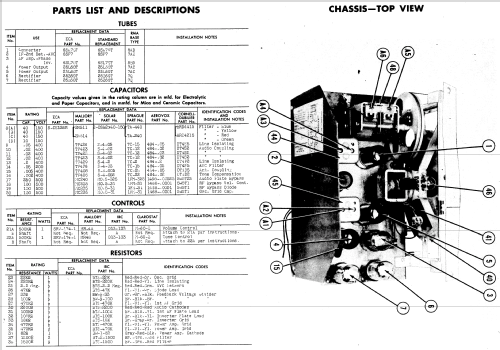

Scanned from the Radio Retailing June 1946 page 121.

Country:  United States of America (USA)
Manufacturer / Brand:  ECA, New York
alternative name

Electrical Corp of America || Electronic Corp. of America
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6SA7 6SF7 6SL7GT 25L6G 25L6G 25Z6G 25Z6G
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 108 - ECA, New York
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.

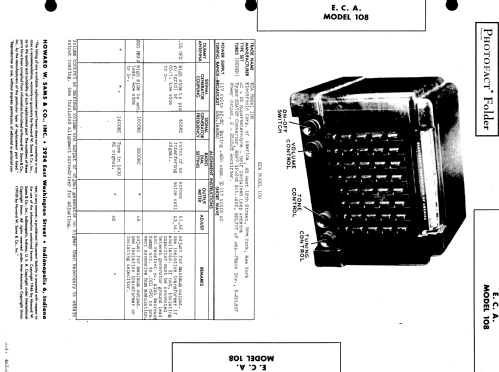

Notes Color= Walnut. See also Sams photofact set 3 folder 463-6 date 8-46.
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition

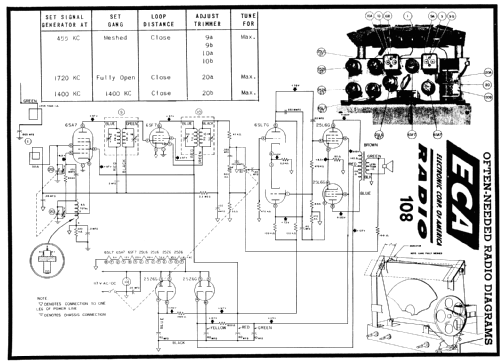

Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 08, 1948
Literature/Schematics (2) Radio Retailing (Radio & Television R.) (June 1946 page 121. August 1946 page 20.)


All listed radios etc. from ECA, New York
Here you find 16 models, 14 with images and 13 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
