16 ; Echophone Radio, Inc (ID = 746985) Radio

16 ; Echophone Radio, Inc (ID = 746986) Radio

16 ; Echophone Radio, Inc (ID = 746987) Radio
16 ; Echophone Radio, Inc (ID = 424751) Radio 16 ; Echophone Radio, Inc (ID = 424759) Radio
16 ; Echophone Radio, Inc (ID = 424760) Radio 16 ; Echophone Radio, Inc (ID = 424761) Radio
16 ; Echophone Radio, Inc (ID = 424762) Radio
Use red slider bar for more.
16 ; Echophone Radio, Inc (ID = 424751) Radio

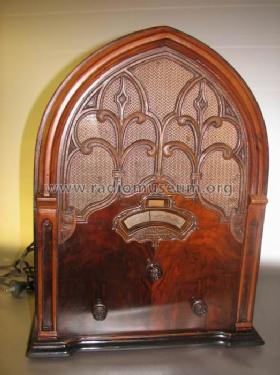

Echophone Radio, Inc: 16 [Radio] ID = 424751 524x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 16, Echophone Radio, Inc. - see also (The) Radio Shop or Hallicrafters Inc.

Country:  United States of America (USA)
Manufacturer / Brand:  Echophone Radio, Inc. - see also (The) Radio Shop or Hallicrafters Inc.
Brand

Ufonic
Year: 1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 58 56 57 58 55 47 47 80
Main principle Superhet with RF-stage; ZF/IF 175 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details Visual Tuning Indicator pre Eye
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 16 - Echophone Radio, Inc. - see
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 380 x 495 x 225 mm / 15 x 19.5 x 8.9 inch
Notes Shadowgraf tuning; push-pull af output stage.
Net weight (2.2 lb = 1 kg) 11.8 kg / 25 lb 15.9 oz (25.991 lb)
Price in first year of sale 59.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932

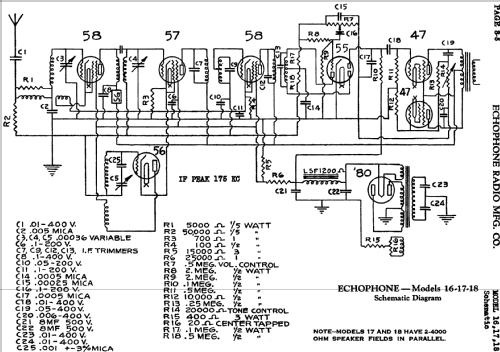

Circuit diagram reference Rider's Perpetual, Volume 3 = 1933 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965


All listed radios etc. from Echophone Radio, Inc. - see also (The) Radio Shop or Hallicrafters Inc.
Here you find 83 models, 38 with images and 44 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
