• Year
  • 1953 ??
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 37985
    • alternative name: LTatro

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 257.5 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org

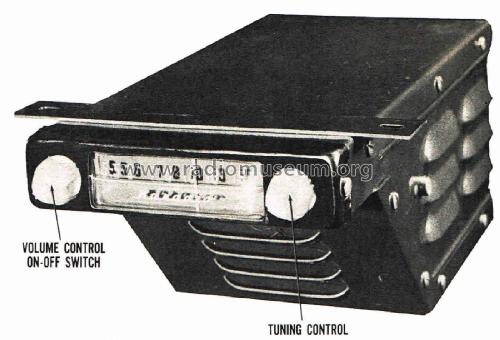

  • Model: 1276 - Eckstein Radio and Television,
  • Shape
  • Chassis only or for «building in»
  • Notes
  • Karadio model 1276 is a battery operated universal superheterodyne automatic receiver.
    typo in manufacturer name on service manual : Elstein radio ... instead of Ecstein radio...







  • External source of data
  • Ernst Erb

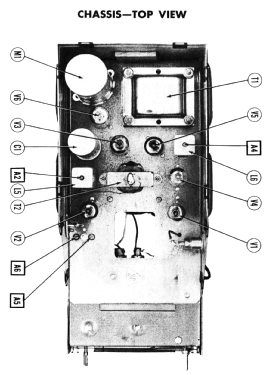

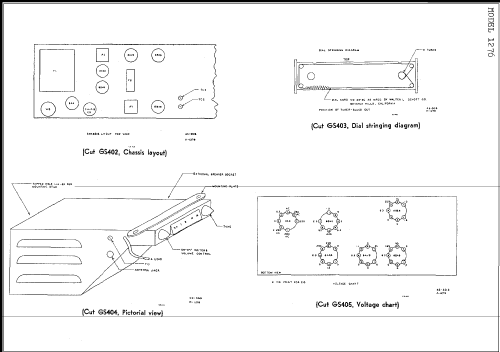

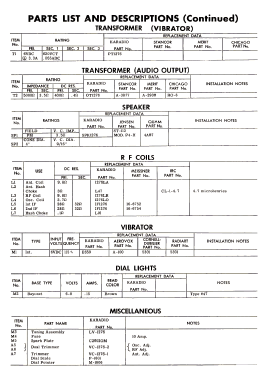

  • Circuit diagram reference
  • Rider's Perpetual, Volume 21, Copyright 1950
