• Country
• Australia

• Manufacturer / Brand
• Eclipse Radio Pty. Ltd.; Melbourne

• Year
• 1946–1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 153304

• • alternative name: Electronic Industries Ltd

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1C7G 1M5G 1K7G 1L5G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage

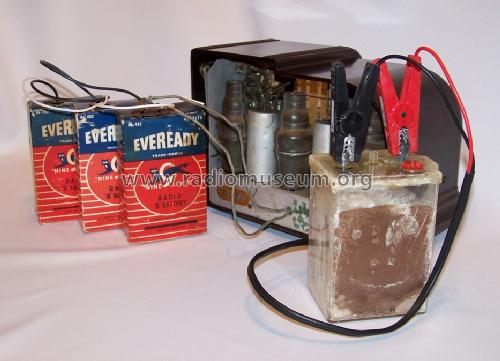

• Storage and/or dry batteries / 135 & 2 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 0.3 W (unknown quality)

• Material

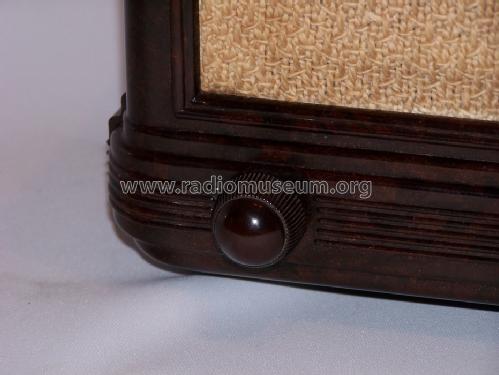

• Bakelite case

• from Radiomuseum.org

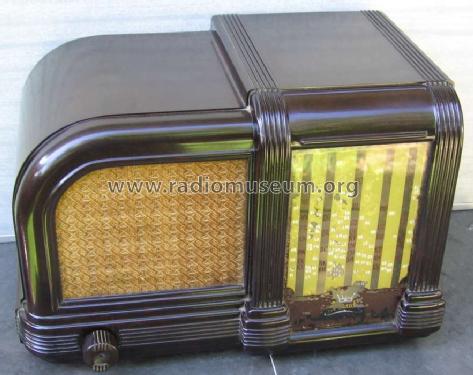

• Model: Monarch DMK - Eclipse Radio Pty. Ltd.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 289 x 186 x 175 mm / 11.4 x 7.3 x 6.9 inch

• Notes
• Available in a variety of colours. Same cabinet used on Monarch DKL.

• Price in first year of sale
• 18.00 Aus£

• Source of data
• - - Data from my own collection

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. V

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
