• Country
• France

• Manufacturer / Brand
• ECR (E.C.R.); Paris

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 324587

• Number of Tubes
• 6

• Valves / Tubes
• 6AJ8 6BA6 6AV6 6BM5 EM34 6X4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12.7 cm = 5 inch

• Material
• Wooden case

• from Radiomuseum.org

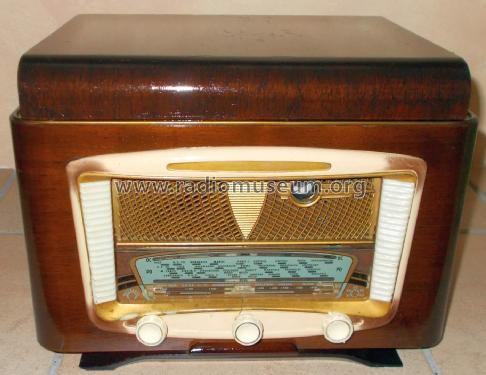

• Model: Simoun Combiné - ECR E.C.R.; Paris

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 340 x 250 x 270 mm / 13.4 x 9.8 x 10.6 inch

• Notes

• 4 gammes d'ondes dont 1 bande etalée (BE).

• Net weight (2.2 lb = 1 kg)
• 6.9 kg / 15 lb 3.2 oz (15.198 lb)

• Price in first year of sale
• 28,500.00 FRF

• Mentioned in
• - - Manufacturers Literature (Tarif Mai 1954)

• Author
• Model page created by Roberto Gabba. See "Data change" for further contributors.

• Other Models

• Here you find 27 models, 23 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
