680 (680/2) (S680) new
Use red slider bar for more.

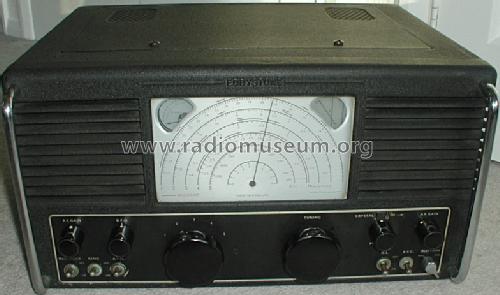

Eddystone,: 680 [Commercial Re] ID = 380171 784x464
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Stratton & Co.Ltd.; Birmingham | ||||
|---|---|---|---|---|---|
| Year: 1949–1951 | Category: Commercial Receiver (may include amateur bands) | ||||
| Valves / Tubes | 14: 6BA6 6BA6 7S7 6AM6 6BA6 6BA6 6AU6 6AU6 EL91 EL91 6BA6 6AL5 6AL5 5Z4 VR150-30 |
| Main principle | Superhet with RF-stage; ZF/IF 450 kHz |
|---|---|
| Wave bands | Broadcast plus more than 2 Short Wave bands. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110, 200, 230 Volt |
| Loudspeaker | - For headphones or amp. |
| Power out | |
| from Radiomuseum.org | Model: 680 [new] - Eddystone, Birmingham |
| Material | Metal case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 426 x 222 x 355 mm / 16.8 x 8.7 x 14 inch |
| Notes | Communications receiver covering 480 kHz - 30,5 MHz in five bands (480-1120 kHz, 1,11-2,5 MHz, 2,5-5,7 MHz, 5,3-12,5 MHz, 12,3 - 30,5 MHz), AM, CW (BFO). S-Meter tuning indicator, Noise limiter, Crystal filter. In contrast to the prototype, the headphone jack is found on left side panel; semicircular dial in rectangular window. Variant: 680/2A (S680/2A) model for New Zealand Broadcasting Corp. with different rear connectors. The later 680X features a broad linear analog dial. In late models 6BE6 was substituted for 7S7 frequency changer tube. |
| Net weight (2.2 lb = 1 kg) | 18.6 kg / 40 lb 15.5 oz (40.969 lb) |
| Price in first year of sale | 85.00 GBP |
| Source of data | Shortwave Receivers - Past & Present (3rd ed.) |
| Mentioned in | Eddystone User Group: Quick Reference Guide |
