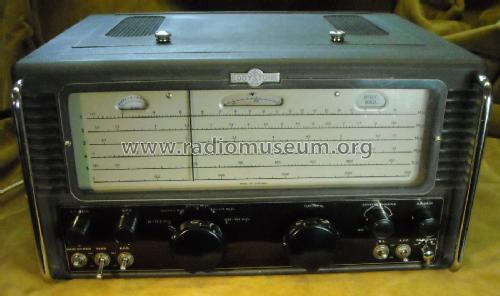

Eddystone,: 680X [Commercial Re] ID = 1182563 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model 680X, Eddystone, Birmingham

Country:  Great Britain (UK)
Manufacturer / Brand:  Eddystone, Birmingham
alternative name

Stratton & Co.Ltd.; Birmingham
Year: 1951–1961 Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 14: 6BA6 6BA6 6BE6 6AM6 6BA6 6BA6 6AL5 6BR7 6BR7 6AM5 6AM5 6BA6 6AL5 5Z4G VR150-30
Main principle Superhet with RF-stage; ZF/IF 450 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110, 200, 230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 680X - Eddystone, Birmingham
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 426 x 222 x 381 mm / 16.8 x 8.7 x 15 inch
Notes Communications receiver covering 480 kHz - 30,5 MHz in five bands (480-1120 kHz, 1,11-2,5 MHz, 2,5-5,7 MHz, 5,3-12,5 MHz, 12,3 - 30,5 MHz), AM, CW (BFO).
S-Meter tuning indicator, Noise limiter, Crystal filter.
Successor of 680 featuring a broad linear analog dial, the crystal filter is included in 680 as in 680X models, in this case, the X-suffix does not stand for crystal filter.
Alternative tube layouts: 6BR7 can be substituted by 8D5, 8D3 instead of 6AM6, EL91 or 7D9 instead of 6AM5.
Matching 812 mounting feet, 811 diecast speaker, 688 black speaker.
Net weight (2.2 lb = 1 kg) 21.3 kg / 46 lb 14.7 oz (46.916 lb)
Price in first year of sale 106.00 GBP
Source of data Shortwave Receivers - Past & Present (3rd ed.)
Mentioned in Eddystone User Group: Quick Reference Guide

Model page created by Martin Bösch. See "Data change" for further contributors.
