888A (S888A)

888A ; Eddystone, (ID = 2298556) Amateur-R

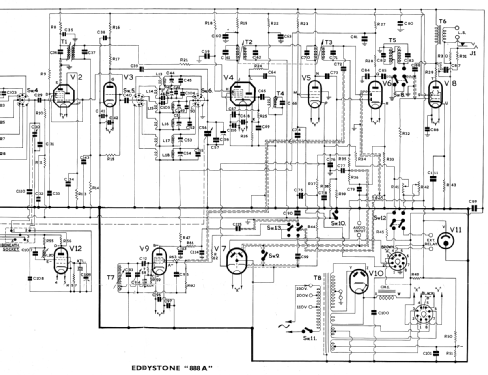

888A ; Eddystone, (ID = 2298557) Amateur-R

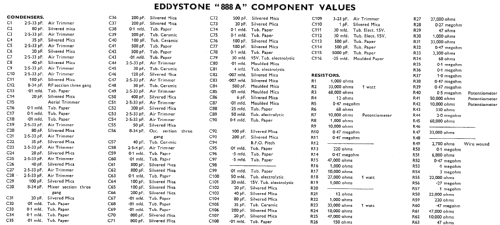

888A ; Eddystone, (ID = 2298558) Amateur-R

888A ; Eddystone, (ID = 2298559) Amateur-R

888A ; Eddystone, (ID = 2298560) Amateur-R

888A ; Eddystone, (ID = 2298561) Amateur-R

888A ; Eddystone, (ID = 2298563) Amateur-R

888A ; Eddystone, (ID = 2298564) Amateur-R

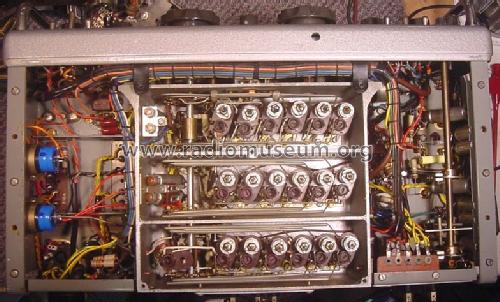

888A ; Eddystone, (ID = 1183278) Amateur-R 888A ; Eddystone, (ID = 1183275) Amateur-R

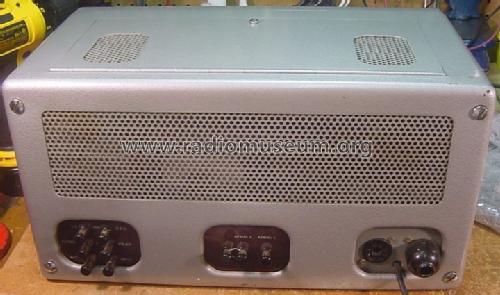

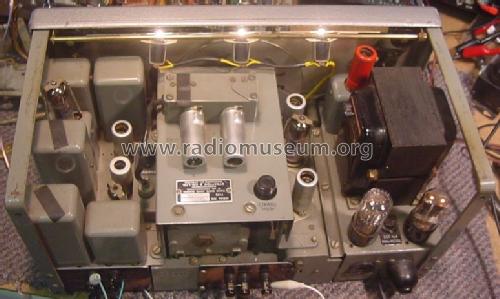

888A ; Eddystone, (ID = 1183276) Amateur-R 888A ; Eddystone, (ID = 1183281) Amateur-R
Use red slider bar for more.

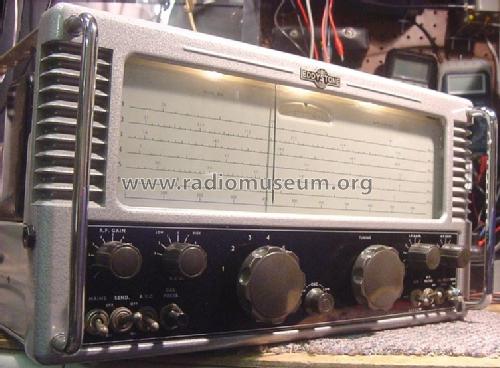

888A ; Eddystone, (ID = 1183278) Amateur-R
Eddystone,: 888A [Amateur-R] ID = 1183278 753x555
Select picture or schematic to display from thumbnails on the right and click for download.
For model 888A (S888A), Eddystone, Birmingham

Country:  Great Britain (UK)
Manufacturer / Brand:  Eddystone, Birmingham
alternative name

Stratton & Co.Ltd.; Birmingham
Year: 1957–1961 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Valves / Tubes 11: 6BA6 ECH81 or 6AJ8 6C4 or L77 ECH81 6BA6 6AT6 or DH77 6AL5 or D77 6AQ5 6BE6 5Z4G VR150-30 6AU6
Main principle Superhet, double/triple conversion; ZF/IF 1620/85 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Alternating Current supply (AC) / 110; 200; 230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 888A - Eddystone, Birmingham
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 16.75 x 8.75 x 10 inch / 425 x 222 x 254 mm
Notes Amateur band receiver covering 160 - 10 m ham bands, AM, CW, SSB.
Internal crystal calibrator, CW audio filter, noise limiter.
Optional 669 external S-meter. Matching 687/1 vibrator pack for 6V DC supply. Matching round 688 external speaker.
Very similar to 888 (S888), but with different tube layout, SSB product detector.
Sometimes marked 888 on dial plate, so check serial plate for correct identification of variant.
Net weight (2.2 lb = 1 kg) 20 kg / 44 lb 0.8 oz (44.053 lb)
Price in first year of sale 190.00 GBP
Source of data Shortwave Receivers - Past & Present (3rd ed.)
Mentioned in Eddystone User Group: Quick Reference Guide

Model page created by Martin Bösch. See "Data change" for further contributors.
