- Country
- Great Britain (UK)
- Manufacturer / Brand
- Eddystone (Brand), Stratton and Co., Ltd., Eddystone Radio Ltd.; Birmingham
- Year
- 1971/1972
- Category
- Commercial Receiver (may include amateur bands)
- Radiomuseum.org ID
- 115345
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Dry Batteries / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 0.75 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

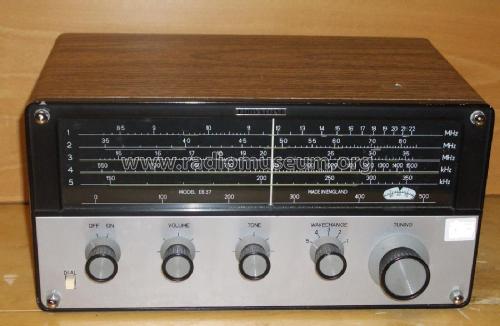

- Model: EB-37 - Eddystone Brand, Stratton and
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 317 x 162 x 203 mm / 12.5 x 6.4 x 8 inch
- Notes
- Marine communications receiver covering 150-350 / 550-1500 kHz; 1,5-3,5 / 3,5-8,5 / 8,5-22 MHz AM, no FM.
Optional 924 AC power supply, optional 945 12/24V DC supply.
Used as ship's cabin set for onboard use on big passenger ships.
Uses five OC171 in RF, Mixer, Osc.,IF I and II stages, GET880/AC127 in AF amp, two OC81 and AC127 in output stage.
- Net weight (2.2 lb = 1 kg)
- 5.8 kg / 12 lb 12.4 oz (12.775 lb)
- Source of data
- Shortwave Receivers - Past & Present (3rd ed.)
- Mentioned in
- Eddystone User Group News Letter 50
- Author
- Model page created by Martin Bösch. See "Data change" for further contributors.
