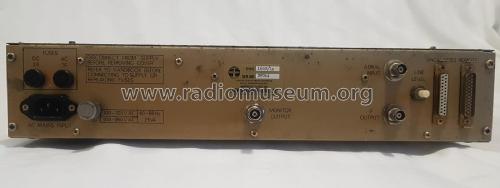

EC1680/1; Eddystone, (ID = 2548314) Commercial Re
Use red slider bar for more.
EC1680/1; Eddystone, (ID = 2548312) Commercial Re
Eddystone,: EC1680/1 [Commercial Re] ID = 2548312 1400x611
Select picture or schematic to display from thumbnails on the right and click for download.
For model EC1680/1, Eddystone, Birmingham:
500kHz Watch Receiver Ex. Brisbane Coast Radio Station (VIB)

Country:  Great Britain (UK)
Manufacturer / Brand:  Eddystone, Birmingham
alternative name

Stratton & Co.Ltd.; Birmingham
Year: 1982 Category: Commercial Receiver (may include amateur bands)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet with RF-stage; ZF/IF 1400 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 230 / 24 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: EC1680/1 - Eddystone, Birmingham
Material Metal case
Shape Rack
Dimensions (WHD) 483 x 88 x 282 mm / 19 x 3.5 x 11.1 inch
Notes Single channel 500 kHz fixed frequency receiver, alternative frequency in the 400 - 535 kHz range provided to customer reqeuirements. CW, MCW.
Used es distress frequency monitor receiver.
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Source of data Shortwave Receivers - Past & Present (3rd ed.)
Mentioned in Eddystone User Group: Quick Reference Guide

Model page created by Martin Bösch. See "Data change" for further contributors.
