Sphinx battery model
Eddystone, Birmingham
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Eddystone, Birmingham
- Year
- 1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 111584
-
- alternative name: Stratton & Co.Ltd.; Birmingham
- Number of Tubes
- 4
- Main principle
- TRF with regeneration
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Storage and/or dry batteries / 2 / 135-150 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sphinx [battery model] - Eddystone, Birmingham
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 23 x 10 x 11 inch / 584 x 254 x 279 mm
- Notes
- Export model intended to monitor the Empire Shortwave Programme, covers switched 13.4-85 and 150-580m bands. First Stratton / Eddystone model with integrated speaker.
Circuitry similar to Kilodyne four, 1936 model.
- Net weight (2.2 lb = 1 kg)
- 11.3 kg / 24 lb 14.2 oz (24.89 lb)
- Price in first year of sale
- 23.00 GBP

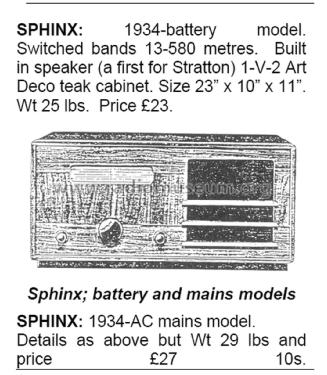

- Mentioned in
- Quick Reference Guide, Eddystone User Group
- Author
- Model page created by Martin Bösch. See "Data change" for further contributors.
