• Country
• United States of America (USA)

• Manufacturer / Brand
• Edison, Thomas A., North American Phonograph / National Phonograph; Orange, NJ

• Year
• 1928

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 37996

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 26 26 26 27 26 50 81

• Main principle
• TRF without regeneration

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 96-107; 107-118; 118-135 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

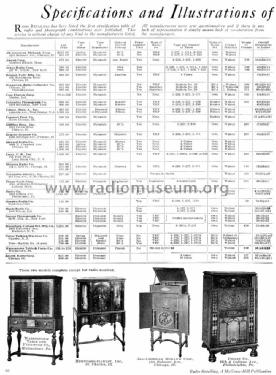

• Model: C-2 Ch= JC [25 Cycle] - Edison, Thomas A., North

• Notes
• One dial (primary tuning control knob) ; 4-gang condenser.

• Price in first year of sale
• 495.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Other Models

• Here you find 88 models, 70 with images and 36 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
