• Country
• United States of America (USA)

• Manufacturer / Brand
• Edison, Thomas A., North American Phonograph / National Phonograph; Orange, NJ

• Year
• 1909

• Category
• Talking machine - Mechanical Gramophone/Phonograph

• Radiomuseum.org ID
• 119990

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Details
• Other Recorder/Player

• Power type and voltage
• Solar- and/or muscle driven, also addl. power jack possible

• Loudspeaker
• Horn

• Material
• Wooden case

• from Radiomuseum.org

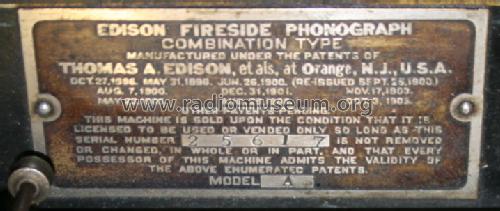

• Model: Phonograph Fireside A - Edison, Thomas A., North

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 270 x 210 x 190 mm / 10.6 x 8.3 x 7.5 inch

• Notes
• Plays 2 and 4 min. cylinder records. Straight horn.

• Net weight (2.2 lb = 1 kg)
• 7.1 kg / 15 lb 10.2 oz (15.639 lb)

• External source of data
• Klaus Wenzel Blankenburg

• Mentioned in
• Brian Jewell, VeteranTalking Machines

• Author
• Model page created by Jürgen Bauch. See "Data change" for further contributors.
