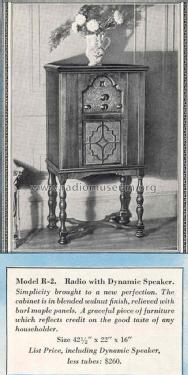

R-2 Ch= JR 60 cycle
Edison, Thomas A., North American Phonograph / National Phonograph; Orange, NJ
- Country
- United States of America (USA)
- Manufacturer / Brand
- Edison, Thomas A., North American Phonograph / National Phonograph; Orange, NJ
- Year
- 1929 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 158294
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- TRF without regeneration
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 96-107; 107-118; 118-135 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: R-2 Ch= JR [60 cycle] - Edison, Thomas A., North
- Notes
- One dial (primary tuning control knob) ; 4-gang condenser.
- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
