- Country
- United States of America (USA)
- Manufacturer / Brand
- Edison, Thomas A., North American Phonograph / National Phonograph; Orange, NJ
- Year
- 1929 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 158398

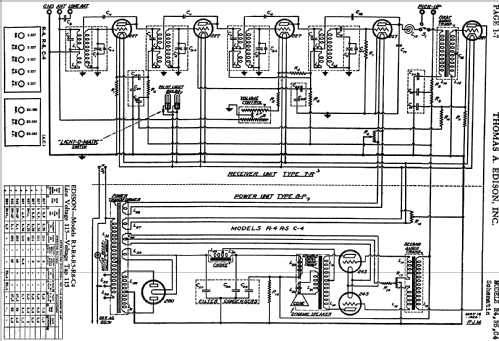

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC)
- from Radiomuseum.org
- Model: R-3 - Edison, Thomas A., North
- Notes
- Push-pull af output stage.
- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
- Other Models
-
Here you find 89 models, 71 with images and 36 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Edison, Thomas A., North American Phonograph / National Phonograph; Orange, NJ
