For model Excellent S, Ehrlich, Kurt; Pirna-Copitz (Ostd.):
Prospektbild

Country:  Germany
Manufacturer / Brand:  Ehrlich, Kurt; Pirna-Copitz (Ostd.)
Year: 1970 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 14:
Main principle Audio-Amplification
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 125, 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Excellent S - Ehrlich, Kurt; Pirna-Copitz
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 310 x 140 x 270 mm / 12.2 x 5.5 x 10.6 inch

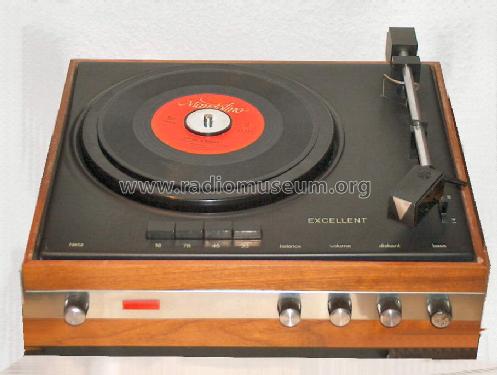

Notes Phonozarge mit Chassis 4TL307, 16/33/45/78 UpM mit Drucktasten wählbar, Rohrtonarm, Tonarmlift, Kristall-Abtastsystem KSS1063. 2 externe Lautsprecherboxen 310×270×140 mm, 2,4 kg; Stereoverstärker mit getrennter Höhen- und Tiefenregelung, Ausgangsleistung 2× 4 Watt, Eingänge für Tuner und TB.
Wie "Excellent", aber moderner gestaltet.
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 495.00 DM
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
