Junior E
Ehrlich, Kurt; Pirna-Copitz (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- Ehrlich, Kurt; Pirna-Copitz (Ostd.)
- Year
- 1973
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 87019
Junior -e- Prospektbild

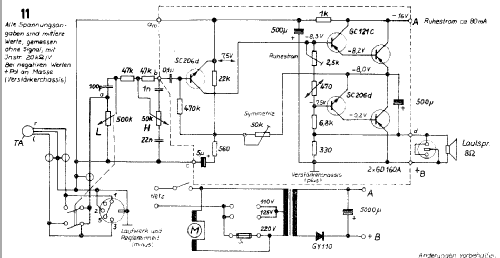

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Junior E - Ehrlich, Kurt; Pirna-Copitz
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 415 x 145 x 285 mm / 16.3 x 5.7 x 11.2 inch
- Notes
- Phono-Koffer mit 33/45 UpM, Kristall-Abtastsystem KS23. Monoverstärker. Separater Lautsprecher- und Stereo-NF-Ausgang.
Vereinfachte Variante des "Junior-automatic", noch 1973 im VEB Phonomat gebaut.
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
