T-114

T-114; Eidgenössische (ID = 509831) Equipment T-114; Eidgenössische (ID = 509835) Equipment
T-114; Eidgenössische (ID = 509830) Equipment T-114; Eidgenössische (ID = 509832) Equipment
T-114; Eidgenössische (ID = 509836) Equipment T-114; Eidgenössische (ID = 928609) Equipment
T-114; Eidgenössische (ID = 928611) Equipment
Use red slider bar for more.

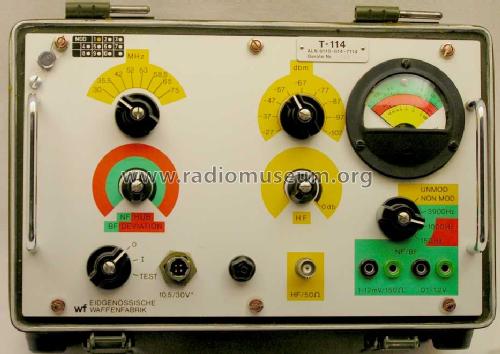

T-114; Eidgenössische (ID = 509831) Equipment
Eidgenössische: T-114 [Equipment] ID = 509831 933x662
Select picture or schematic to display from thumbnails on the right and click for download.
For model T-114, Eidgenössische Waffenfabrik; Bern

Country:  Switzerland
Manufacturer / Brand:  Eidgenössische Waffenfabrik; Bern
Year: 1972 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands Short Wave (SW only)
Details
Power type and voltage Powered by external power supply or a main unit. / 10.5-30 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: T-114 - Eidgenössische Waffenfabrik;
Material Metal case
Shape Boatanchor (heavy military or commercial set).
Dimensions (WHD) 275 x 195 x 190 mm / 10.8 x 7.7 x 7.5 inch

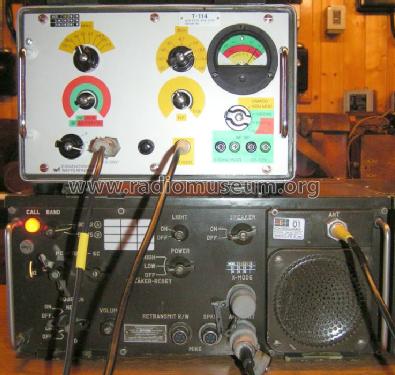

Notes Testgerät für Militärfunkgeräte SE-227 und SE-412.
Net weight (2.2 lb = 1 kg) 5.8 kg / 12 lb 12.4 oz (12.775 lb)
Source of data - - Data from my own collection

Model page created by Anton Gämperle. See "Data change" for further contributors.
