- Country
- United States of America (USA)
- Manufacturer / Brand
- Eilen Radio Laboratories; New York (NY)
- Year
- 1936
- Category
- Amateur-Receiver (amateur bands, may include broadcast bands)
- Radiomuseum.org ID
- 265301

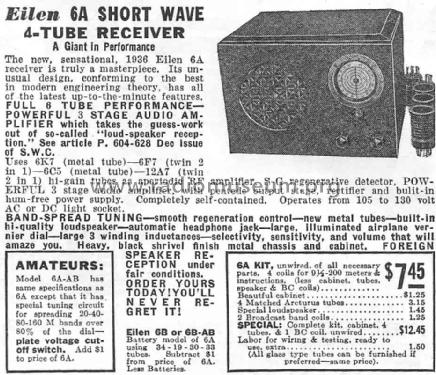

Short Wave Craft March 1936 page 681.
- Number of Tubes
- 4
- Main principle
- TRF with regeneration
- Power type and voltage
- AC/DC-set / 105-130 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: 6A-AB - Eilen Radio Laboratories; New
- Shape
- Tablemodel, low profile (big size).
- Notes
-
The Eilen Radio 6A-AB is the Amateur Band version of the model 6A. It has special bandspread coils for the 20, 40, 80, and 160 meter amateur bands. I also has a plate voltage cut-off switch. It was available as a kit or factory wired.
- Price in first year of sale
- 13.45 USD
- Mentioned in
- Short Wave Craft March 1936 page 681.
- Literature/Schematics (1)
- Short Wave Craft February 1936 pgs 604 & 628.
- Author
- Model page created by Wayne Childress. See "Data change" for further contributors.
