Short Wave 4-Tube Receiver 6C
Eilen Radio Laboratories; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Eilen Radio Laboratories; New York (NY)
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 265179

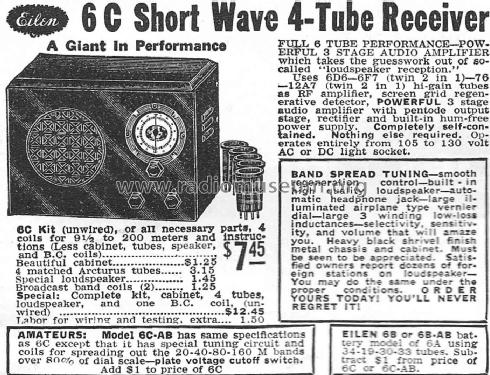

Short Wave Craft August 1936 page 231.
- Number of Tubes
- 4
- Main principle
- TRF with regeneration; 3 AF stage(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 105-130 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: Short Wave 4-Tube Receiver 6C - Eilen Radio Laboratories; New
- Shape
- Tablemodel, low profile (big size).
- Notes
-
The Eilen Radio 6C tunes 2.5 to 200 meters using plug-in coils.
- Price in first year of sale
- 12.45 USD
- Mentioned in
- Short Wave Craft August 1936 page 231.
- Author
- Model page created by Wayne Childress. See "Data change" for further contributors.
