219; EKA; Budapest (ID = 1244657) Radio
EKA; Budapest: 219 [Radio] ID = 1244657 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 219, EKA; Budapest

Country:  Hungary
Manufacturer / Brand:  EKA; Budapest
alternative name

Engel Károly Elektromos Szerelésianyagok és Készülékek Gyára, Budapest.
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: EF6 EL3 EZ2
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)

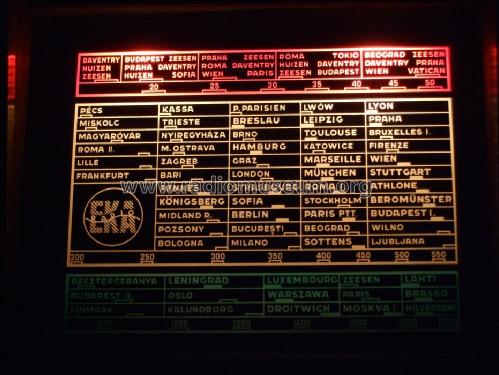

Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 219 - EKA; Budapest
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 535 x 315 x 235 mm / 21.1 x 12.4 x 9.3 inch
Price in first year of sale 195.00 Pengő
Source of data -- Original prospect or advert
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Gabriel Toth. See "Data change" for further contributors.



All listed radios etc. from EKA; Budapest
Here you find 117 models, 116 with images and 35 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
