319; EKA; Budapest (ID = 384343) Radio

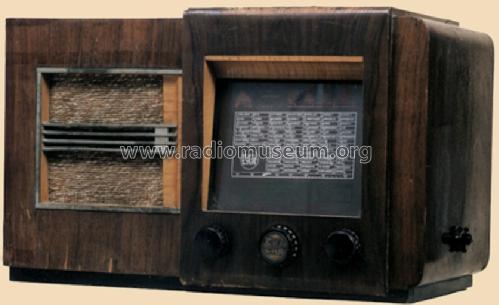

EKA; Budapest: 319 [Radio] ID = 384343 500x578
Select picture or schematic to display from thumbnails on the right and click for download.
For model 319, EKA; Budapest
Country:  Hungary
Manufacturer / Brand:  EKA; Budapest
alternative name
Engel Károly Elektromos Szerelésianyagok és Készülékek Gyára, Budapest.
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ACH1 EF9 EBL1 EZ3
Main principle Superheterodyne (common); ZF/IF 125 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Model: 319 - EKA; Budapest
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes Plattenspieler Eingang, Kopfhörer Ausgang
Price in first year of sale 303.00 pengö
Source of data Rádiókészülékek Kapcsolásai 1936-56

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
