• Country
• Hungary

• Manufacturer / Brand
• EKA; Budapest

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 91115

• • alternative name: Engel Károly Elektromos Szerelésianyagok és Készülékek Gyára, Budapest.

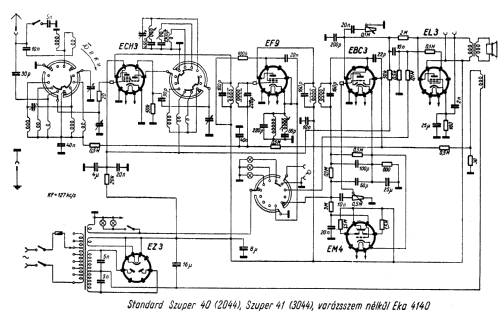

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

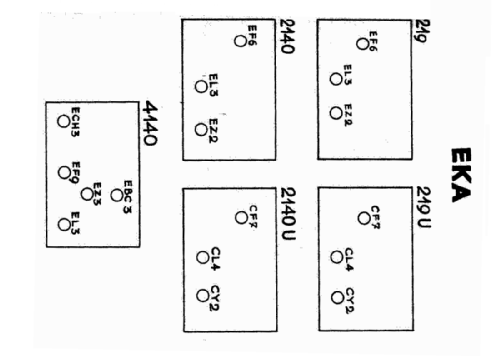

• ECH3 EF9 EBC3 EL3 EZ3

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org

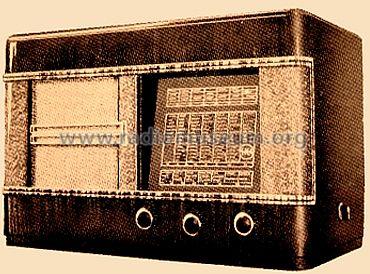

• Model: 4140 - EKA; Budapest

• Shape
• Tablemodel, with any shape - general.

• Price in first year of sale
• 314.00 pengö

• Mentioned in
• Rádiókészülékek Kapcsolásai 1936-56

• Author
• Model page created by Gabriel Toth. See "Data change" for further contributors.

• Other Models

• Here you find 119 models, 118 with images and 35 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
