• Country
• Hungary

• Manufacturer / Brand
• EKA; Budapest

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 93720

• • alternative name: Engel Károly Elektromos Szerelésianyagok és Készülékek Gyára, Budapest.

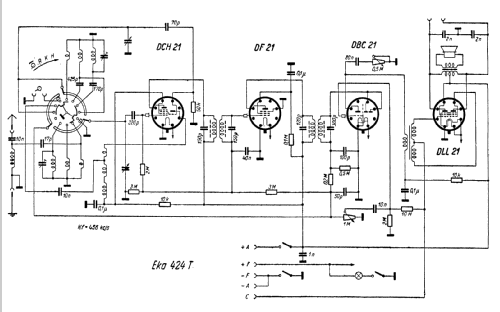

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• DCH21 DF21 DBC21 DLL21

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Telepes Szuper 424T - EKA; Budapest

• Shape
• Tablemodel, with any shape - general.

• Price in first year of sale
• 335.00 Pengö

• Mentioned in
• Rádiókészülékek Kapcsolásai 1936-56

• Author
• Model page created by Gabriel Toth. See "Data change" for further contributors.
