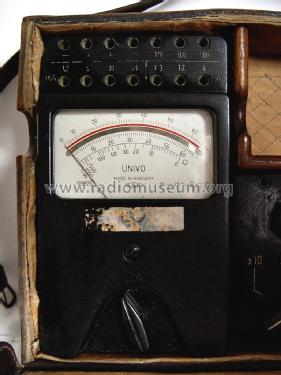

Multimeter UNIVO

Multimeter UNIVO; Elektromos (ID = 392397) Equipment Multimeter UNIVO; Elektromos (ID = 1960778) Equipment
Multimeter UNIVO; Elektromos (ID = 1960779) Equipment Multimeter UNIVO; Elektromos (ID = 1960780) Equipment
Multimeter UNIVO; Elektromos (ID = 1960782) Equipment Multimeter UNIVO; Elektromos (ID = 1960783) Equipment
Multimeter UNIVO; Elektromos (ID = 1964931) Equipment Multimeter UNIVO; Elektromos (ID = 2140326) Equipment
Multimeter UNIVO; Elektromos (ID = 2140494) Equipment Multimeter UNIVO; Elektromos (ID = 2140496) Equipment
Use red slider bar for more.
Multimeter UNIVO; Elektromos (ID = 392397) Equipment
Elektromos: Multimeter UNIVO [Equipment] ID = 392397 609x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Multimeter UNIVO, Elektromos Készülékek és Mérőműszerek Gyára - EKM; Esztergom:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Elektromos Készülékek és Mérőműszerek Gyára - EKM; Esztergom
Year: 1958 Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries / 1 × 3 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Multimeter UNIVO - Elektromos Készülékek és Mérőm
Material Bakelite case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 90 x 157 x 44 mm / 3.5 x 6.2 x 1.7 inch
Notes AC/DC; 3, 6, 30, 120, 300 Volt; 0,3; 1,2; 6 A; 10, 100, 1000 kOhm. Dimensions Ohm adaptor: 85×89×44 mm.
Net weight (2.2 lb = 1 kg) 0.6 kg / 1 lb 5.1 oz (1.322 lb)
Price in first year of sale 1'090.00 Forint
Source of data - - Data from my own collection
Literature/Schematics (4) Magyar Műszerek Katalógusa ,MIGÉRT, Budapest 1961

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Elektromos Készülékek és Mérőműszerek Gyára - EKM; Esztergom
Here you find 221 models, 214 with images and 96 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
