Szuper

EKA; Budapest

  • Year
  • 1935
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 220599
    • alternative name: Engel Károly Elektromos Szerelésianyagok és Készülékek Gyára, Budapest.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 111-240 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Szuper - EKA; Budapest
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 430 x 390 x 315 mm / 16.9 x 15.4 x 12.4 inch
  • Notes

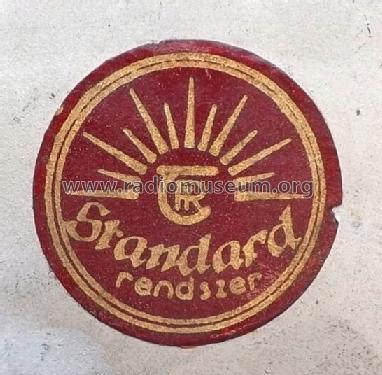

  • Standard system (chassis)!
  • Net weight (2.2 lb = 1 kg)
  • 14.8 kg / 32 lb 9.6 oz (32.599 lb)
