A22; Ekco, E.K.Cole Ltd.; (ID = 19546) Radio

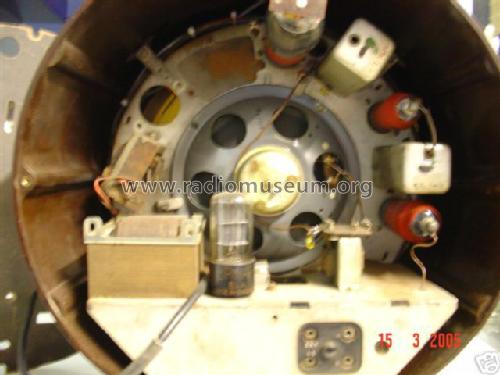

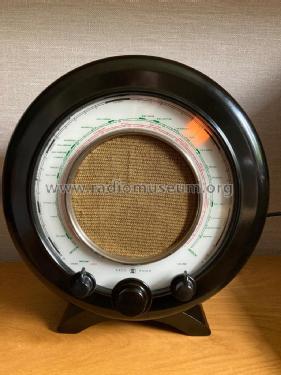

Ekco, E.K.Cole Ltd.;: A22 [Radio] ID = 19546 214x244
Select picture or schematic to display from thumbnails on the right and click for download.
For model A22, Ekco, E.K.Cole Ltd.; Southend-on-Sea

Country:  Great Britain (UK)
Manufacturer / Brand:  Ekco, E.K.Cole Ltd.; Southend-on-Sea
Year: 1945 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH35 EF39 EBL31 AZ31
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: A22 - Ekco, E.K.Cole Ltd.; Southend-
Material Bakelite case
Dimensions (WHD) 330 x 370 x 190 mm / 13 x 14.6 x 7.5 inch
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
Literature/Schematics (1) Trader sheet 768


All listed radios etc. from Ekco, E.K.Cole Ltd.; Southend-on-Sea
Here you find 399 models, 273 with images and 254 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Ekco, E.K.Cole Ltd.;: A22
Threads: 1 | Posts: 1
Hits: 2216     Replies: 0
ekco: A22;
Konrad Birkner † 12.08.2014
29.Dec.03
  1

Erscheinungsjahr:November 1945 !  6 Kreise;Superhet;Zf=465 kHz;200-240V~;Wellenbereiche LMK (16-50m) ;Originalpreis14L14s +3L3s3d Tax;Material Bakelit braun oder schwarz mit Chromzierat;(Quellen:Hill/RadioRadio;und "Trader"Service Sheet 768).
