Ekco, E.K.Cole Ltd.;: A23 [Radio] ID = 1156052 933x838
Select picture or schematic to display from thumbnails on the right and click for download.

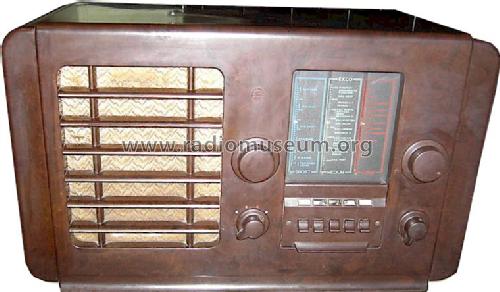

For model A23, Ekco, E.K.Cole Ltd.; Southend-on-Sea

Country:  Great Britain (UK)
Manufacturer / Brand:  Ekco, E.K.Cole Ltd.; Southend-on-Sea
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH35 EF39 EBC33 EL33 AZ31
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: A23 - Ekco, E.K.Cole Ltd.; Southend-
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 22 x 13 x 10 inch / 559 x 330 x 254 mm
Notes SW / MW / LW / TV-Sound channel. Same case for U49 (1947). Chassis is identical to that in the C36 console radio and similar to that in the RG35 radiogram.
Collectors' prices
Source of data Radio! Radio!
Literature/Schematics (1) Trader sheet 802

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
