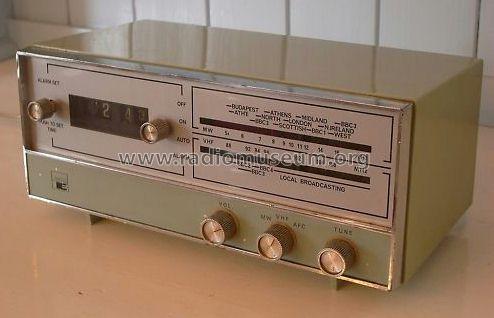

Digital Clock Radio A402

Ekco, E.K.Cole Ltd.; Southend-on-Sea

Data
Forum
Pictures
Collections

  • Year
  • 1970
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 201948

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 470/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
  • Power out
  • 0.3 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Digital Clock Radio A402 - Ekco, E.K.Cole Ltd.; Southend-
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 250 x 110 x 130 mm / 9.8 x 4.3 x 5.1 inch
  • Notes

  • An AC mains powered AM/FM alarm clock radio covering MW (525 - 1650 kHz) and VHF (88-108 MHz). Flip numbers. Sockets for aerial and earphone.

  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Sheet for Ekco Model A402 dated 5/70)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
