• Year
  • 1934
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 78158

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 110 kHz
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250 Volt
  • Loudspeaker
  • -Loudspeaker incorporated, but system not known.
  • Material
  • Bakelite case
  • from Radiomuseum.org

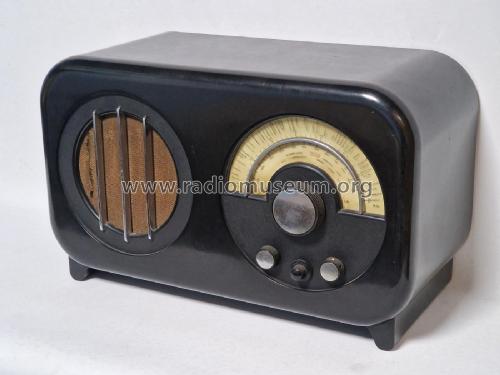

  • Model: AC85 [black] - Ekco, E.K.Cole Ltd.; Southend-
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 21 x 12.5 x 9.5 inch / 533 x 318 x 241 mm
  • Notes
  • also a brown version and Battery models(B85). Optional wooden stand.
  • Literature/Schematics (1)
  • Trader sheet 654
