• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ekco, E.K.Cole Ltd.; Southend-on-Sea

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78474

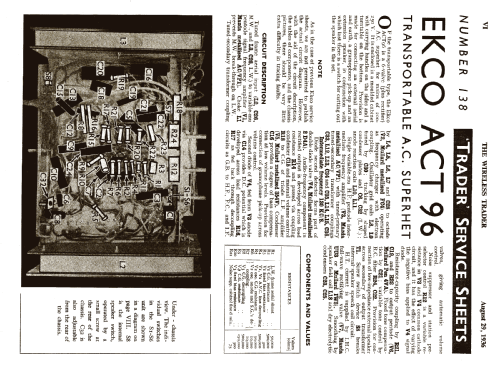

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• AC/VP1 FC4 AC/VP1 2D4A 354V Pen4VA UU3 or IW3

• Main principle
• Superhet with RF-stage; ZF/IF 130 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: ACT96 [brown] - Ekco, E.K.Cole Ltd.; Southend-

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 14.5 x 18 x 9.5 inch / 368 x 457 x 241 mm

• Notes
• Transportable AC superhet. Frame aerial for both wavebands incorporated.
  Price £13.2.6
  Also a black version.

• Source of data
• Radio! Radio!

• Literature/Schematics (1)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (138)

• Literature/Schematics (2)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (663)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.

• Other Models

• Here you find 423 models, 308 with images and 255 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Ekco, E.K.Cole Ltd.; Southend-on-Sea
