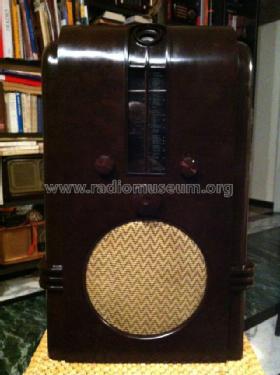

All Electric AC97 brown

All Electric AC97; Ekco, E.K.Cole Ltd.; (ID = 852803) Radio All Electric AC97; Ekco, E.K.Cole Ltd.; (ID = 907226) Radio
All Electric AC97; Ekco, E.K.Cole Ltd.; (ID = 907227) Radio All Electric AC97; Ekco, E.K.Cole Ltd.; (ID = 907228) Radio
All Electric AC97; Ekco, E.K.Cole Ltd.; (ID = 1896868) Radio All Electric AC97; Ekco, E.K.Cole Ltd.; (ID = 1896871) Radio
Use red slider bar for more.
All Electric AC97; Ekco, E.K.Cole Ltd.; (ID = 852803) Radio
Ekco, E.K.Cole Ltd.;: All Electric AC97 [Radio] ID = 852803 329x495
Select picture or schematic to display from thumbnails on the right and click for download.
For model All Electric AC97 brown, Ekco, E.K.Cole Ltd.; Southend-on-Sea

Country:  Great Britain (UK)
Manufacturer / Brand:  Ekco, E.K.Cole Ltd.; Southend-on-Sea
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: FC4 VP4B or VP41 TDD4 TV4 AC042 IW4/350
Main principle Super-Heterodyne (Super in general); ZF/IF 126.5 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker -Loudspeaker incorporated, but system not known.
Power out
from Radiomuseum.org Model: All Electric AC97 [brown] - Ekco, E.K.Cole Ltd.; Southend-
Material Bakelite case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 12.75 x 21 x 8.5 inch / 324 x 533 x 216 mm
Notes "Mystic Eye" tuning indicator.
Also a black version.
Source of data Radio! Radio!
Literature/Schematics (1) Trader sheet 664

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
