All Electric Consolette RS3 mahogany

All Electric Consolette RS3; Ekco, E.K.Cole Ltd.; (ID = 2176741) Radio

All Electric Consolette RS3; Ekco, E.K.Cole Ltd.; (ID = 2176742) Radio

All Electric Consolette RS3; Ekco, E.K.Cole Ltd.; (ID = 1685309) Radio
All Electric Consolette RS3; Ekco, E.K.Cole Ltd.; (ID = 1613975) Radio All Electric Consolette RS3; Ekco, E.K.Cole Ltd.; (ID = 1397790) Radio
All Electric Consolette RS3; Ekco, E.K.Cole Ltd.; (ID = 1423843) Radio All Electric Consolette RS3; Ekco, E.K.Cole Ltd.; (ID = 1613976) Radio
All Electric Consolette RS3; Ekco, E.K.Cole Ltd.; (ID = 1777910) Radio
Use red slider bar for more.

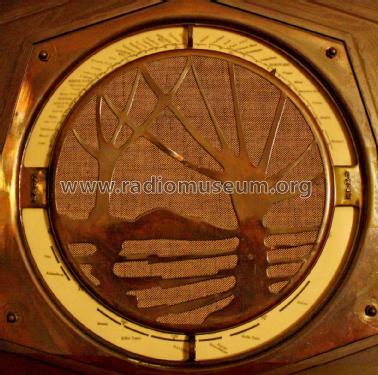

All Electric Consolette RS3; Ekco, E.K.Cole Ltd.; (ID = 1613975) Radio
Ekco, E.K.Cole Ltd.;: All Electric Consolette RS3 [Radio] ID = 1613975 900x808
Select picture or schematic to display from thumbnails on the right and click for download.
For model All Electric Consolette RS3 mahogany, Ekco, E.K.Cole Ltd.; Southend-on-Sea

Country:  Great Britain (UK)
Manufacturer / Brand:  Ekco, E.K.Cole Ltd.; Southend-on-Sea
Year: 1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: S4VA S4VB 354V PM24B DW3_Mullard
Main principle TRF with regeneration
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-210; 220-230; 240-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: All Electric Consolette RS3 [mahogany] - Ekco, E.K.Cole Ltd.; Southend-
Material Bakelite case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 17.5 x 18 x 10 inch / 445 x 457 x 254 mm
Notes

The RS3 was the first British receiver with station names on the dial. It was designed by Ekco's in-house designer, J. K. White.

Not to be confused with the SH25 (1932) of similar appearance!

Source of data Radio! Radio!
Literature/Schematics (1) Trader sheet 735
Literature/Schematics (2) Wireless World (The), London (WW, 79) (August 26th, 1931)
Documents regarding this model
  Article in Wireless World, August 26th, 1931 926 KB

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
