• Year
  • 1937/1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 111238

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 126.5 kHz
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: AW88 - Ekco, E.K.Cole Ltd.; Southend-
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Notes
  • Wavebands MW / LW / SW / and TV Sound channel. Chassis is identical to that in the C88 console radio and similar to that in the RG109 radiogram.
  • Source of data
  • - - Data from my own collection
  • Literature/Schematics (1)

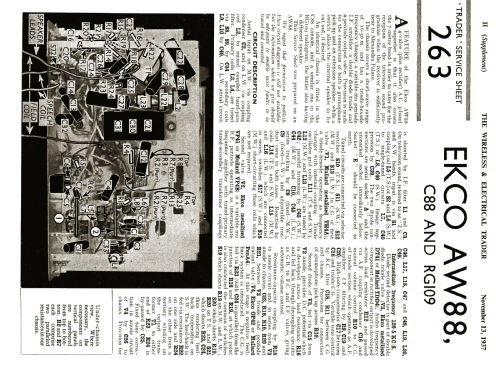

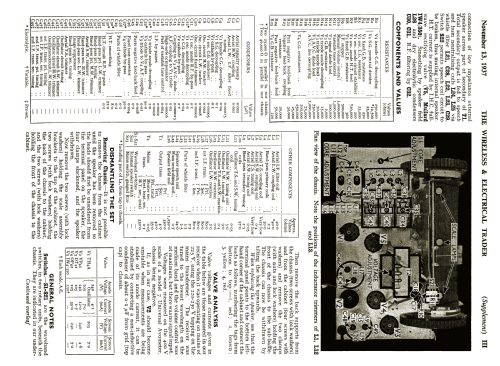

  • Trader sheet 648
  • Author
  • Model page created by Jose Duarte Costa. See "Data change" for further contributors.
