• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ekco, E.K.Cole Ltd.; Southend-on-Sea

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 194981

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 215SG or PM12 220VS or PM12M 210HF or PM1HL 210LF or PM2DX 220B or PD220

• Main principle
• Superheterodyne (common); ZF/IF 110 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 2 & 9 & 130 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: B74 - Ekco, E.K.Cole Ltd.; Southend-

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes
• Bakelite cabinet available in walnut or black and chrome. Removable loudspeaker grille. Gramophone input is fed into the aerial circuit.

• Literature/Schematics (1)

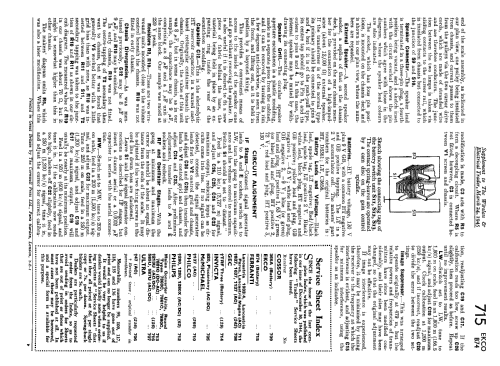

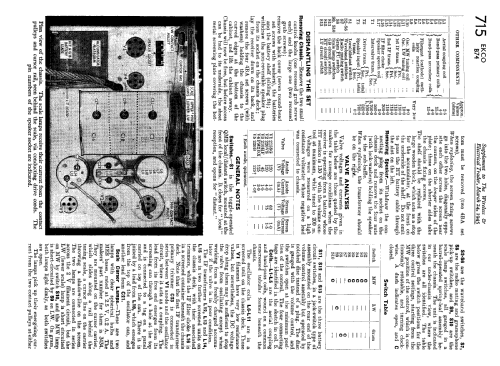

• Trader sheet 715

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
