New Verity PT424
Use red slider bar for more.

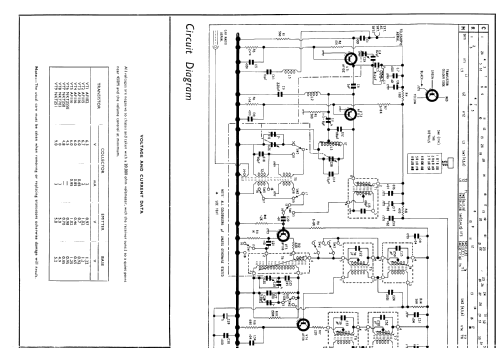

Ekco, E.K.Cole Ltd.;: New Verity PT424 [Radio] ID = 879635 933x640
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1964 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 9: AF102 AF115 AF116 AF116 AF116 NKT255 NKT258 NKT703 NKT251 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 470/10700 kHz; 3 AF stage(s) |
|---|---|
| Tuned circuits | 5 AM circuit(s) 8 FM circuit(s) |
| Wave bands | Broadcast, Long Wave and FM or UHF. |
| Details | |
| Power type and voltage | Dry Batteries / 9 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm |
| Power out | |
| from Radiomuseum.org | Model: New Verity PT424 - Ekco, E.K.Cole Ltd.; Southend- |
| Material | Leather / canvas / plastic - over other material |
| Dimensions (WHD) | 12 x 9.75 x 4.25 inch / 305 x 248 x 108 mm |
| Notes | Portable battery radio, battery type PP9. Fitted with tape & aerial sockets. Same chassis as Ferranti model PT1100 "Voyager". |
| Source of data | -- Schematic |
| Circuit diagram reference | Radio and TV Servicing books (R&TVS) book |
| Literature/Schematics (1) | - - Manufacturers Literature |
