PT208

PT208; Ekco, E.K.Cole Ltd.; (ID = 774142) Radio

PT208; Ekco, E.K.Cole Ltd.; (ID = 774143) Radio
PT208; Ekco, E.K.Cole Ltd.; (ID = 1081310) Radio PT208; Ekco, E.K.Cole Ltd.; (ID = 178517) Radio
PT208; Ekco, E.K.Cole Ltd.; (ID = 219677) Radio PT208; Ekco, E.K.Cole Ltd.; (ID = 416470) Radio
PT208; Ekco, E.K.Cole Ltd.; (ID = 416471) Radio PT208; Ekco, E.K.Cole Ltd.; (ID = 1432731) Radio
PT208; Ekco, E.K.Cole Ltd.; (ID = 1432733) Radio
Use red slider bar for more.
PT208; Ekco, E.K.Cole Ltd.; (ID = 1081310) Radio
Ekco, E.K.Cole Ltd.;: PT208 [Radio] ID = 1081310 908x700

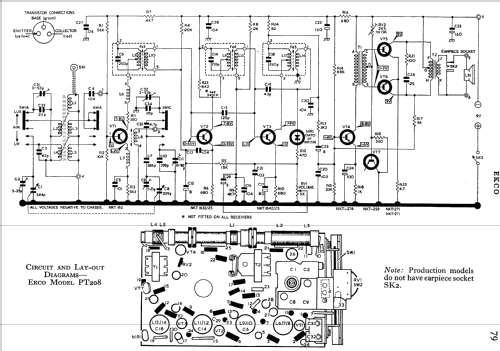

Select picture or schematic to display from thumbnails on the right and click for download.
For model PT208, Ekco, E.K.Cole Ltd.; Southend-on-Sea

Country:  Great Britain (UK)
Manufacturer / Brand:  Ekco, E.K.Cole Ltd.; Southend-on-Sea
Year: 1961 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: NKT72 NKT73 NKT74 NKT274 NKT271 NKT271 NKT259
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: PT208 - Ekco, E.K.Cole Ltd.; Southend-
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 240 x 130 x 75 mm / 9.4 x 5.1 x 3 inch
Notes Alternative transistors : NKT162, NKT163Z/25, NKT164Z/25, NKT274, 2x NKT271, NKT259. Similar to Ferranti PT1127. Pre-set for Radio Luxembourg.
Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Howard Craven. See "Data change" for further contributors.



All listed radios etc. from Ekco, E.K.Cole Ltd.; Southend-on-Sea
Here you find 402 models, 278 with images and 253 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
