PT378/1

PT378/1; Ekco, E.K.Cole Ltd.; (ID = 774516) Radio

PT378/1; Ekco, E.K.Cole Ltd.; (ID = 774517) Radio

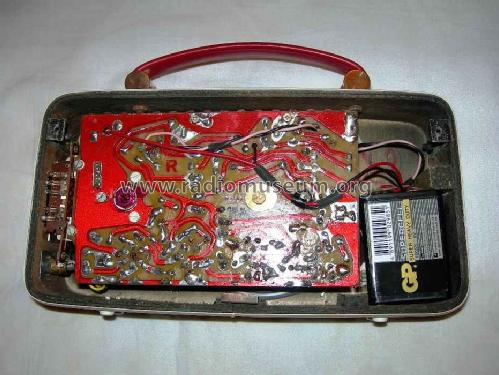

PT378/1; Ekco, E.K.Cole Ltd.; (ID = 218326) Radio PT378/1; Ekco, E.K.Cole Ltd.; (ID = 219678) Radio
PT378/1; Ekco, E.K.Cole Ltd.; (ID = 1230824) Radio PT378/1; Ekco, E.K.Cole Ltd.; (ID = 1988705) Radio
PT378/1; Ekco, E.K.Cole Ltd.; (ID = 1988706) Radio PT378/1; Ekco, E.K.Cole Ltd.; (ID = 1988707) Radio
Use red slider bar for more.
PT378/1; Ekco, E.K.Cole Ltd.; (ID = 218326) Radio
Ekco, E.K.Cole Ltd.;: PT378/1 [Radio] ID = 218326 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model PT378/1, Ekco, E.K.Cole Ltd.; Southend-on-Sea:

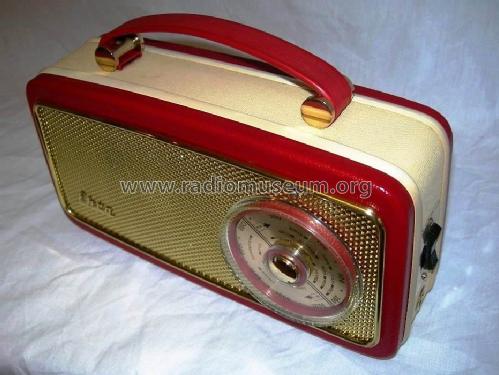

My Ekco PT378/1 MW/LW portable radio in a red vinyl and and beige rexine covered wooden case with brass trim.

Country:  Great Britain (UK)
Manufacturer / Brand:  Ekco, E.K.Cole Ltd.; Southend-on-Sea
Year: 1965 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: NKT72 NKT73 NKT74 NKT274 NKT271 NKT271 NKT259
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: PT378/1 - Ekco, E.K.Cole Ltd.; Southend-
Shape Portable set > 8 inch (also usable without mains)
Notes Later version of model PT378. Additional transistor provides stabilisation of output stage.

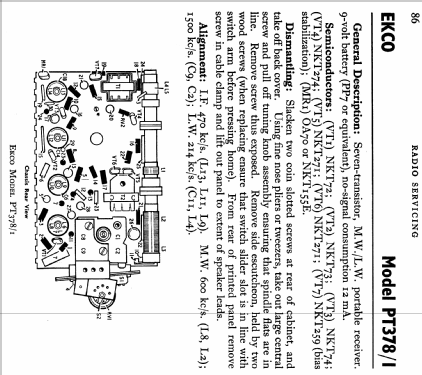

Circuit diagram reference Radio and TV Servicing books (R&TVS) book

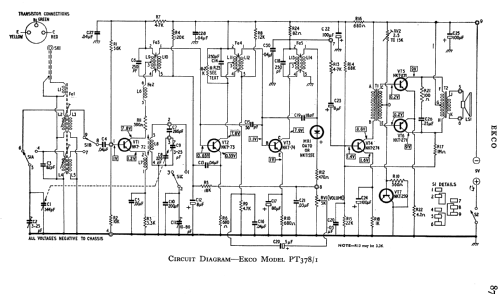

Literature/Schematics (1) -- Schematic

Model page created by Keith Staines. See "Data change" for further contributors.
