- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ekco, E.K.Cole Ltd.; Southend-on-Sea
- Year
- 1966 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 180398
General View
Garrard 2000 Deck Detail
Front/Top View

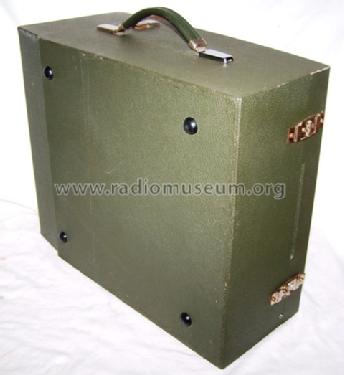

Bottom/Back View
Amplifier Detail View
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Power out
- 5 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: RP600 - Ekco, E.K.Cole Ltd.; Southend-
- Shape
- Tablemodel, with any shape - general.
- Notes
- Record reproducer fitted with Garard 2000, 4 speed autochanger. Acos GP91/1 cartridge. Mono amplifier with socket for second channel amplfier unit.
- Source of data

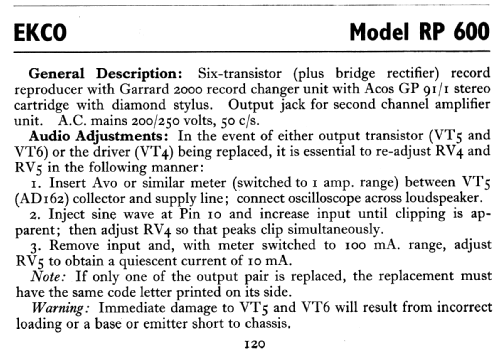

- -- Schematic
- Literature/Schematics (1)
- Radio And Television Servicing books (R&TVS) (ERT Service Chart 1694)
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
