SH25 DC version

SH25; Ekco, E.K.Cole Ltd.; (ID = 846573) Radio
SH25; Ekco, E.K.Cole Ltd.; (ID = 846581) Radio SH25; Ekco, E.K.Cole Ltd.; (ID = 846580) Radio

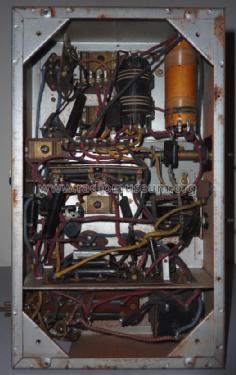

SH25; Ekco, E.K.Cole Ltd.; (ID = 846582) Radio SH25; Ekco, E.K.Cole Ltd.; (ID = 862036) Radio
SH25; Ekco, E.K.Cole Ltd.; (ID = 1151487) Radio SH25; Ekco, E.K.Cole Ltd.; (ID = 1932194) Radio
Use red slider bar for more.
SH25; Ekco, E.K.Cole Ltd.; (ID = 846581) Radio
Ekco, E.K.Cole Ltd.;: SH25 [Radio] ID = 846581 679x770
Select picture or schematic to display from thumbnails on the right and click for download.
For model SH25 DC version, Ekco, E.K.Cole Ltd.; Southend-on-Sea

Country:  Great Britain (UK)
Manufacturer / Brand:  Ekco, E.K.Cole Ltd.; Southend-on-Sea
Year: 1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: DSB DH VDS DH DPT
Main principle Superheterodyne (common); ZF/IF 110 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC) / 200-210; 220-230; 240-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: SH25 [DC version] - Ekco, E.K.Cole Ltd.; Southend-
Material Bakelite case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 445 x 457 x 254 mm / 17.5 x 18 x 10 inch
Notes Not to be confused with the similar looking RS3.
Net weight (2.2 lb = 1 kg) 17.1 kg / 37 lb 10.6 oz (37.665 lb)
Source of data - - Data from my own collection
Literature/Schematics (1) - - Manufacturers Literature

Model page created by John Koster. See "Data change" for further contributors.
