Transistor Portable PT 438

Transistor Portable PT 438; Ekco, E.K.Cole Ltd.; (ID = 1335710) Radio

Transistor Portable PT 438; Ekco, E.K.Cole Ltd.; (ID = 1335711) Radio
Transistor Portable PT 438; Ekco, E.K.Cole Ltd.; (ID = 1317913) Radio Transistor Portable PT 438; Ekco, E.K.Cole Ltd.; (ID = 1166269) Radio
Transistor Portable PT 438; Ekco, E.K.Cole Ltd.; (ID = 1317912) Radio
Use red slider bar for more.

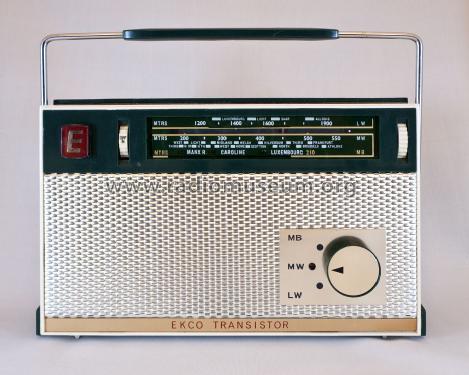

Transistor Portable PT 438; Ekco, E.K.Cole Ltd.; (ID = 1317913) Radio
Ekco, E.K.Cole Ltd.;: Transistor Portable PT 438 [Radio] ID = 1317913 933x745
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor Portable PT 438, Ekco, E.K.Cole Ltd.; Southend-on-Sea

Country:  Great Britain (UK)
Manufacturer / Brand:  Ekco, E.K.Cole Ltd.; Southend-on-Sea
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2SA73 2SA156 2SA155 NKT275 NKT278 NKT271 NKT773
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / PP7: 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: Transistor Portable PT 438 - Ekco, E.K.Cole Ltd.; Southend-
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 8.5 x 5.75 x 3.25 inch / 216 x 146 x 83 mm
Notes

A battery powered portable AM seven transistor radio covering MW (200 - 550 metres) and LW (1200 - 1900 metres). Sockets for car radio aerial and extension loudspeaker.





Net weight (2.2 lb = 1 kg) 2 lb 8 oz (2.5 lb) / 1.135 kg
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) ERT Service Chart 1489 dated May 6 1965

Model page created by a member from A. See "Data change" for further contributors.
