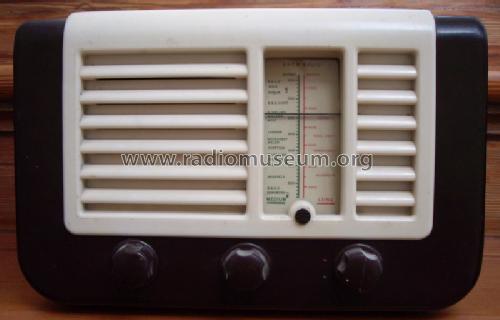

U29; Ekco, E.K.Cole Ltd.; (ID = 762128) Radio
Ekco, E.K.Cole Ltd.;: U29 [Radio] ID = 762128 933x679
Select picture or schematic to display from thumbnails on the right and click for download.
For model U29, Ekco, E.K.Cole Ltd.; Southend-on-Sea

Country:  Great Britain (UK)
Manufacturer / Brand:  Ekco, E.K.Cole Ltd.; Southend-on-Sea
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: CCH35 EF39 Pen453DD or CBL31 CY31
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: U29 - Ekco, E.K.Cole Ltd.; Southend-
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 12 x 7.75 x 7 inch / 305 x 197 x 178 mm
Notes

A compact AC/DC mains 2 band table radio in a bakelite cabinet. Released in June 1946, price £13 13s 0d plus £2 18s 8d purchase tax. The Ekco U29X model has the same cabinet.

Net weight (2.2 lb = 1 kg) 5.1 kg / 11 lb 3.7 oz (11.233 lb)
Price in first year of sale 16.58 £
Source of data Radio! Radio!
Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (799 dated January 11 1947)

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
